Lighting that works harder, indoors and out
Two families under one roof. EV Sun fittings sterilise the air in a room while they light it; a Japanese-standard LED street lighting range — mains or solar, SIRIM certified — takes over at the kerb.
- 90%
- Germs removed per hour
- 162
- lm/W peak street efficacy
- IP66
- Street-rated ingress
EV Sun Health sterilization lights.
Lighting that does more than light: it clears the air in the room while it works, and it drops into the fitting already in the ceiling.
Eco-Friendly
Non-toxic, ROHS compliant, and free from harmful substances and VOC emissions.
Optimum Brightness
Premium LED chips provide superior area coverage with optimal brightness levels enhancing visibility.
Long Lasting
Industry-leading lifespan includes a 2-year warranty, doubling the market average durability.
Eye-Caring Technology
Flicker-free LED tech ensures optimal eye comfort, reducing strain for homes, schools, offices and workspaces.
Sterilization Effect
Powered by resonance frequency, EV Sun Health lights eliminate 90% of germs in an hour — ideal for hospitals, offices and restaurants.
Energy Efficient Design
EV Sun lights offer a 0.9+ power factor for efficient, cost-effective and eco-friendly lighting in homes and businesses.
A fitting, not a project.
Standard sizes and voltages mean a retrofit is an electrician's afternoon. The sterilisation runs continuously in the background while the room is simply lit.
Ask about a retrofitRooms where the air matters
Then the road outside it.
A full LED street lighting range built to Japanese standards through Iwasaki Electric's Malaysian arm — mains-fed or wholly off-grid, SIRIM certified, from a 30W access road to a 280W highway.

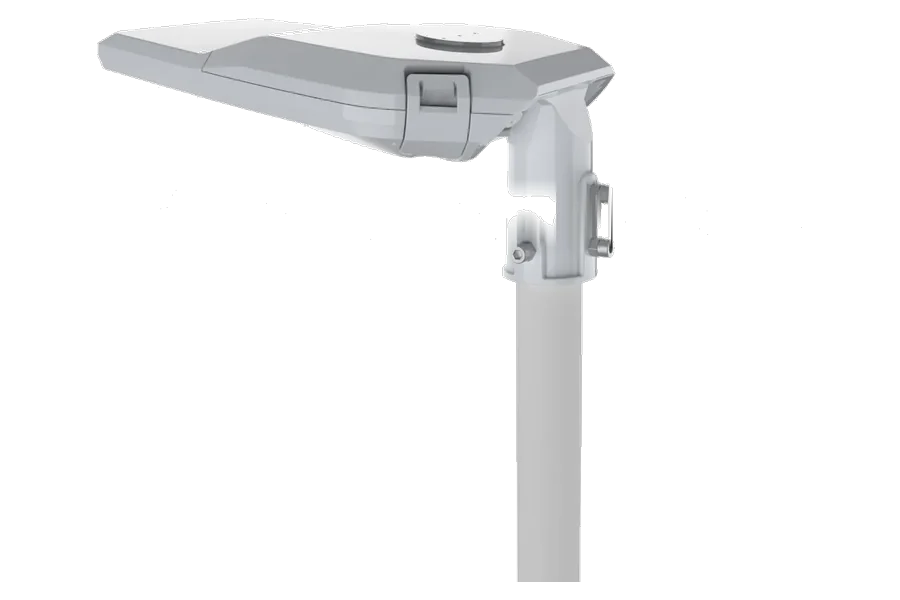

ELAP SL-EY636
The workhorse. Eleven outputs on one body, tool-less entry for maintenance, and the highest efficacy in the range.
- 30W – 240W, eleven outputs
- Up to 38,826 lm at 162 lm/W
- IP66, IK09, CE & CB
- Power factor 0.95 – 0.98
- Main road, residential and smart-lighting ready

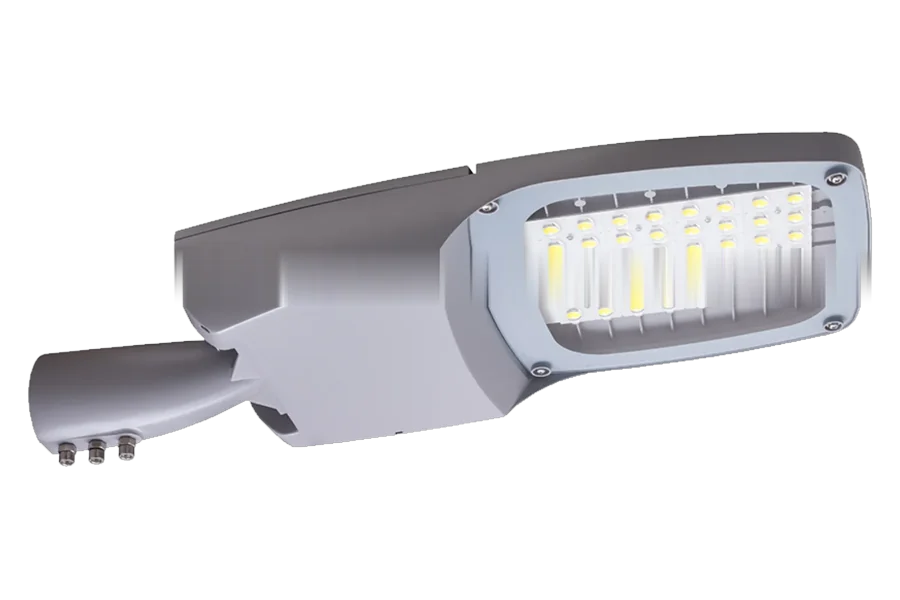

LEDioc SL-EY686
The specified option, where a project calls for SIRIM paperwork and heavy surge protection.
- 35W – 280W across four bodies
- Up to 38,347 lm at 137.4 lm/W
- SIRIM PC004404, EMAL listed
- 50kV / 25kA surge protection
- L70 > 50,000 h at 50°C ambient
- ±15° tilt, 1–10V / PWM / DALI dimming
SURIA SL-EY628
The widest choice of outputs in the range — fourteen steps, so the fitting is matched to the road rather than rounded up to it.
- 30W – 180W in fourteen steps
- 3000K or 6000K, others on request
- Type II distribution
- Eyelite, by Iwasaki Electric

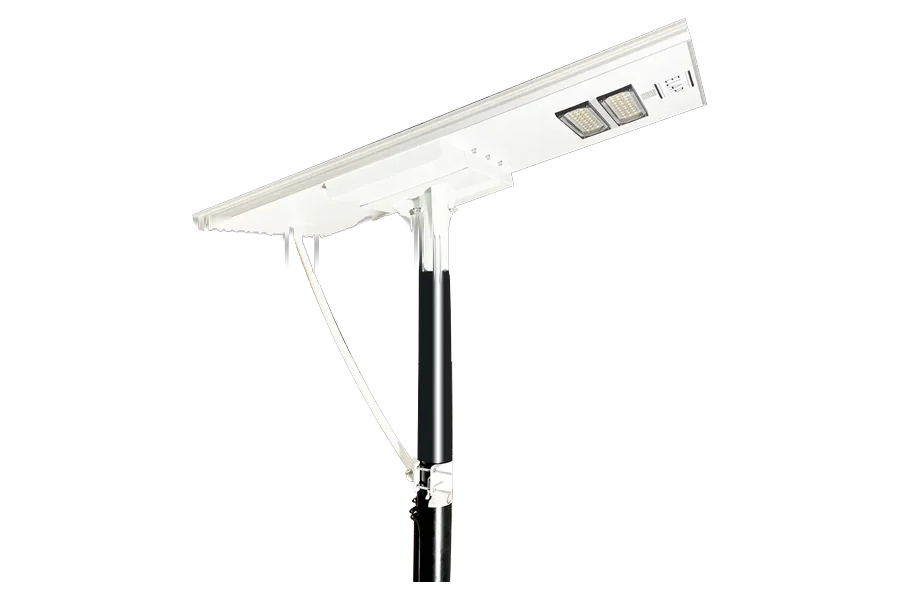

SORAA all-in-one solar
Off-grid. Panel, LiFePO₄ battery and fitting as one unit, for roads where bringing a cable is the expensive part. Three models, 40W to 120W.
- SSL-EY632 — 60W, 80W, 120W
- SSL-EL631 — 80W, 13,600 lm
- SSL-EY633 — 40W, up to 200 lm/W
- Two days' autonomy, 12h a night
- Monocrystalline panel, glass LED module
No trench, no meter, no cable run.
Each SORAA unit carries its own generation and storage, sized so it still lights the road after two overcast days. Which model you need is a question of road width and mounting height rather than of what the grid can reach.
Ask for a lighting layout| Model | EY633 | EY632 | EL631 | EY632 | EY632 |
|---|---|---|---|---|---|
| Wattage | 40W | 60W | 80W | 80W | 120W |
| Luminous flux | 8,000 lm | 10,200 lm | 13,600 lm | 13,600 lm | 20,400 lm |
| Efficacy | 200 lm/W | 170 lm/W | 170 lm/W | 170 lm/W | 170 lm/W |
| Solar panel | 120 Wp | 135 Wp | 100 Wp | 160 Wp | 260 Wp |
| Battery (LiFePO₄) | 460.8 Wh | 1,152 Wh | 691.2 Wh | 1,536 Wh | 2,304 Wh |
| Battery voltage | 12.8 V | 12.8 V | 12.8 V | 25.6 V | 25.6 V |
| Daily consumption | 304 Wh | 450 Wh | 608 Wh | 608 Wh | 912 Wh |
| Charging time | 3–4 h | — | 2–4 h | — | — |
| Fixture weight | 23 kg | — | 17.7 kg | — | — |
| Autonomy | 2 days | 2 days | 2 days | 2 days | 2 days |
Manufacturer figures; EY632 is the EMAL version. Lumen output ±10%, efficacy ±5% at 6000K with glass. Autonomy assumes 12 hours of lighting a night through overcast and rainy days. Dashes are figures ELM does not publish for that model.
Mains models at a glance
| Model | Brand | Output | Colour temp. |
|---|---|---|---|
| ELAP SL-EY636 | ELAP | 30W – 240W | On request |
| LEDioc SL-EY686 | EYE | 35W – 280W | 3000K standard |
| SURIA SL-EY628 | Eyelite | 30W – 180W | 3000K / 6000K |
| SURIA SL-EY626 · discontinued | Eyelite | 10W – 150W | 3000K / 4000K / 5500K |
| SURIA SL-EY623 · discontinued | Eyelite | 30W – 150W | 6000K / 3000K / 4000K |
The EY626 and EY623 are end-of-life and available while stocks last — listed because they are still specified on maintenance and like-for-like replacement jobs.
Beyond the carriageway
The same fittings are specified well away from public roads. ELM lists them across a long tail of outdoor applications, which is useful when one supplier can cover a whole site:
- Car parks, loading areas and shipping yards
- Compound, plaza and toll lighting
- Public parks, jogging tracks and playgrounds
- Bridges, harbours and jungle tracks
- Beach, farm and construction site lighting
- Security, surveillance and perimeter
